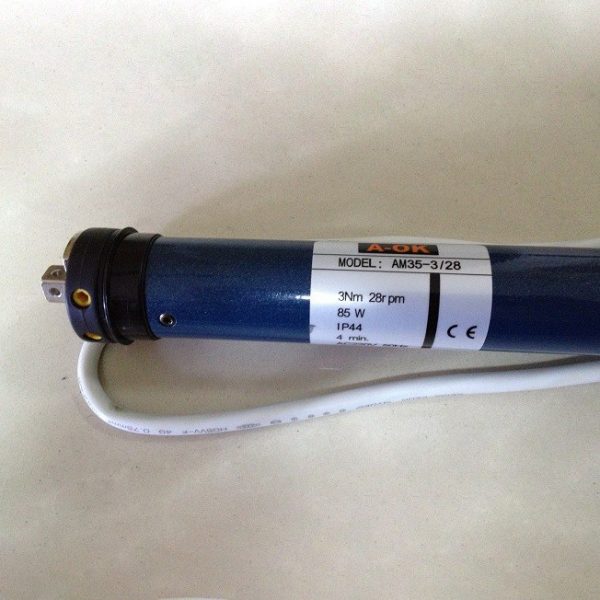

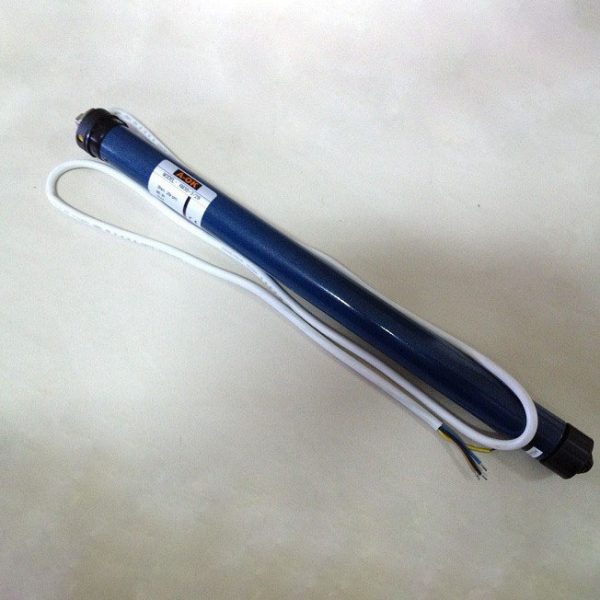

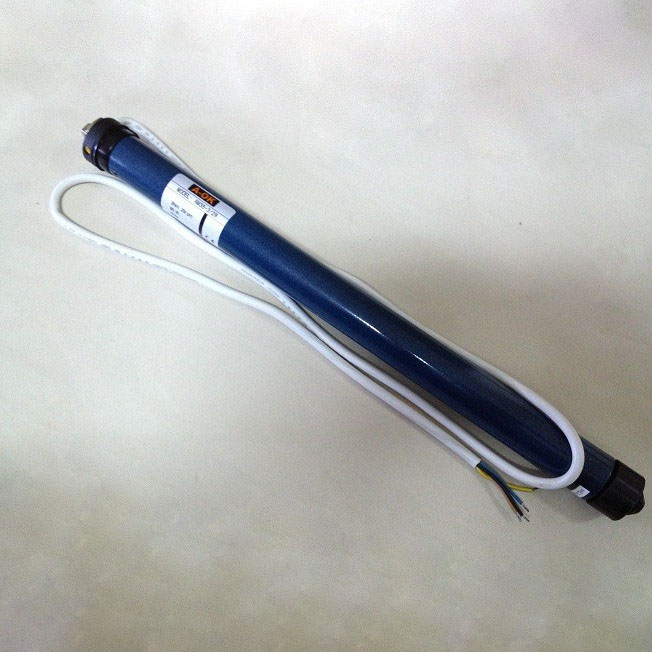

AM35-3/28 Turbular Motor 3N.m/28rpm

Rp1.850.000

5 in stock

BROWSE OUR CATALOGUES

TURBULAR MOTOR FOR MOTORIZED SCREEN / ROLLER BLIND SCREEN

AOK AM35 Series

AC standard motor mainly applied to weight within 30kgs middle and small size roller blinds motor, pleated blinds, honeycomb blinds, projection screen, also can be used for middle and small size aluminium and wooden venetian blinds. It can work with manual switch and all AOK control system.

FEATURES

  • Quite running, dB performance below 40dB
  • Mechanical limit switch, manually set upper and down limits
  • Precise limits adjusting and repeat limits journey
  • Double sides braking design with patent
  • Work with external switch and AOK control system
AM35-328 3
AM35-328 2
Parameters AOK AM35 Series
AC 230V 40/60Hz Motor AM35-3/28 AM35-6/28 AM35-10/14
 Rated Torque 3N.m 6N.m 10N.m
 Rated RPM 28rpm 28rpm 14rpm
 Motor Diameter 35mm 35mm 35mm
 Rated Voltage 230V 230V 230V
 Rated Power 85W 115W 115W
 Rated Current 0.38A 0.485A 0.485A
 Availability Available Available Unavailable
